Radiant Floor Heating System Thermostat Specs

The electronic programmable "TOUCH" thermostats used for ComfortTile® and other Warmzone® floor heating systems are designed to control electric radiant heat for maximum comfort and minimum power consumption. The system temperature can be controlled by an external sensor (for ambient temperature) or built-in sensor, located in the floor itself. Warmzone's advanced TOUCH thermostats for electric underfloor heating systems feature sleek designs and intuitive control, created for easy installation and use.

To learn more about the many radiant floor heating systems available to you, call Warmzone today at 888-488-9276.

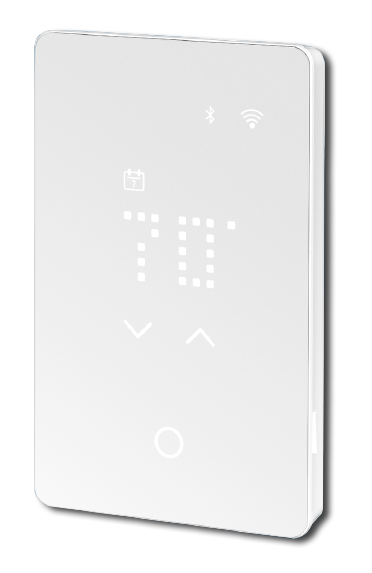

Features and Specs for the LED WiFi Floor Heating System Thermostat

Remote Accessibility
Radiant floor heating system thermostat

With LED WiFi touch thermostats, users can remotely adjust and monitor their thermostats. The thermostats can be accessed locally through Bluetooth® and virtually anywhere when connected to the cloud service through WiFi. Users can control the thermostat using just their voice with Amazon Alexa or Google Assistant-enabled devices.

Smart Installation Via App

An intelligent WiFi thermostat simplifies installation, program setting, and operation. The app guides the installer and end-user through the few necessary steps to ensure the correct installation and operation of the thermostat. The thermostat can also be set up with without app.

Quick Adjustments

Simply tap the capacitive touch buttons on the thermostat gently with your fingertip if you want to make quick temperature adjustments or toggle the schedule on or off. In many cases, scrolling text will appear to help explain the changes.


The LED WiFi thermostat transmits encrypted data securely via TLS 1.3. This latest state-of-the-art encryption technology allows faster and more secure connections. For your WiFi connection, take advantage of the secure and comprehensive WPA3 protocol.

Sleek Design

The advanced thermostat is available in an elegant white design with a plain surface. It has a discrete look and fits to most wall decorations.

Thermostat Features
Attractive Design: Sleek design complements existing decor.
Remote Accessibility: Thermostat can be accessed remotely through Bluetooth®, WiFi, and Cloud connected.
Voice Control Function: Voice control compatible with Amazon Alexa and with Google Assistant-enabled devices.
Easy Setup: Easy and intuitive setup by a wizard.
Advanced Display: LED display. Light intensity is increased during use, and dimmed or turned off when not being used.
Robust Programming: Allows up to 10 different schedules and overrides (manual mode, hold for X hours, vacation mode, frost protection, and eco mode).
Versatile: Suitable for vinyl, tile, laminate, and wooden floor heating systems.
Technical Data
Supply Voltage: 120/208/240 Vac, 50/60Hz
Max Load: 15A Maximum (resistive load)
Max Power: 1,800 W at 120 Vac; 3,120 W at 208 Vac; 3,600 W at 240 Vac
Temperature Range: +41°F to 104°F (+5° to +40°C)
Temperature Limit Range: +41°F to 104°F (+5° to +40°C)
Floor Limit Range: +41°F to 104°F (+5° to +40°C)
Ambient Temperature Range: +32 to +104°F (0 to +40°C)
Floor protection laminate/wood: 82°F(27.5°C)
Floor protection tile: 104°F(40°C)
GFCI: Class A (5mA trip level)
Enclosure Rating: IP20
Regulation Principle: PWM / PI
Floor Sensor (included): NTC (10 KΩ) 15 ft. (4.5 m.)
Room Sensor: Embedded
Dimensions (H,W,D): 4.98/3.09/0.46-inches (126x78x12mm)
Wall box (H,W,D): 3 x 2 x 2-inches
Display: LED light through
Touch: Capacitive buttons
WLAN: 802.11 n WiFi module
Security: TLS 1.3
Supporting: USG-4000
WiFi: IEEE 802.11 b/g/n
WiFi Encryption: WPA, WPA2, WPA3
Bluetooth: Version 4.2 (BDR/EDR/BLE)
Contains FCC ID: XPYNINAW106
Contains IC ID: 8595A-NINAW106

Features and Specs for the TOUCH Floor Heating System Thermostat

Smart Interaction
Radiant floor heating system thermostat

The interaction for the TOUCH thermostat and TOUCH thermostat with WIFI capability is based on a "touch" color screen, making control smart and easy. An entire screen is designed for every action, and therefore programming, schedule override, or setup becomes much easier for both the installer and end user.

Smooth Programming

Thermostat programming is now based on 6-event days, copying one day schedule to any other day with a single operation. Any schedule override is just a touch away, until the next event for a number of hours or days in the future, or until next time you change your mind. The TOUCH thermostat is delivered with a default schedule.

Power Logging

Follow the thermostat power consumption in the energy log. Logging of the last 24 hours is saved in high resolution, but logging history is also stored in the thermostat. Power logging is easily stored to your computer by use of our QR technology.

QR Code Provides Support on a Whole new Level

Radiant floor heating system thermostat Thermostat settings and energy log can be monitored on any device with web access. Just scan the QR code from the thermostat and view data on a web site. The new, smart and interactive manual provides the details of what you can do with the thermostat. The QR code can also be forwarded to a supporter, shortening downtime on "what is" explanations and jumping directly to "what to do".

Easy Installation

Just connect the wires, turn on the power and follow the wizard. There is no need to remember special settings, the thermostat pre-sets the installer wizard and the user wizard ensures a fast and smooth process. Thus, no unintended heating before you are ready - a check question ensures that.

Smarter Control of the Power

By default, the thermostat controls ambient temperature and protects the floor against overheating. The default floor sensor can be replaced by any floor sensor. The floor protection fits laminate/wood, tile, concrete or wherever lower maximum temperature is required. If you want the heating to start at a given time, or at a given temperature at a specific time - we call it early start. If you want the heating to stop if you start cooling, but to start if it passes the threshold - we call it open window.

For more details about Warmzone's floor heating system thermostats, please call us today, at 888-488-9276.

Thermostat Features
Simple To Use: 3.5-inch color screen with easy interactive touch control.
Easy Programming: Thermostat programming is based on 6-event days. Copy one day schedule to any other day with a single operation.
Track Power Function: Track power consumption and save it to a PC.
Export Function: Thermostat settings can be exported to web page for support.
Compatibility: Universal compatibility with existing floor heating sensors.
Versatile: Suitable for all types of floors, including: tile, laminate, stone, concrete, wooden, etc.
Battery Backup: 5-year battery backup of clock and calendar.
Warranty: 2-year manufacturer warranty.
Technical Data
Temperature Range: 5° to 40°C/+41°F to 104°F
Temperature Limit Range: 5° to 40°C/+41°F to 104°F
Ambient Temperature Range: 32 to 104°F (0 to +40°C)
Floor protection laminate/wood: 82°F(27.5°C)
Floor protection tile: 88°F(31.0°C)
GFCI: Class A (5mA trip level)
Housing: IP20
Supply Voltage: 120/240 Vac, 50/60Hz
Max Load: 15A Maximum (resistive load)
Max Power: 1,800W at 120 Vac; 3,120W at 240 Vac; 3,600W at 240 Vac
Dimensions (H,W,D): 5.1 x 3.2 x .8-inches (130 x 82 x 20mm)
Wall box (H,W,D): 3 x 3 x 2-inches
Display: 3.5 inches, 65k color
Touch: Resistive
Approvals: CSA, UL
Warranty: Two years



Warmzone floor heating system thermostats are among the industry's finest. For details, please contact a radiant floor heating system expert today, at 888-488-9276. We'll be happy to go over the different control options and answer any questions you may have.
